Laser cutting of leaky coaxial cables

As the necessary cable for 5G underground and indoor, leaky coaxial cable is also divided into three different types: leakage type, coupling type and radiation type. However, the leakage type and radiation type are similar and can be classified together. However, the slots required for leaky coaxial cables with different requirements are also different.

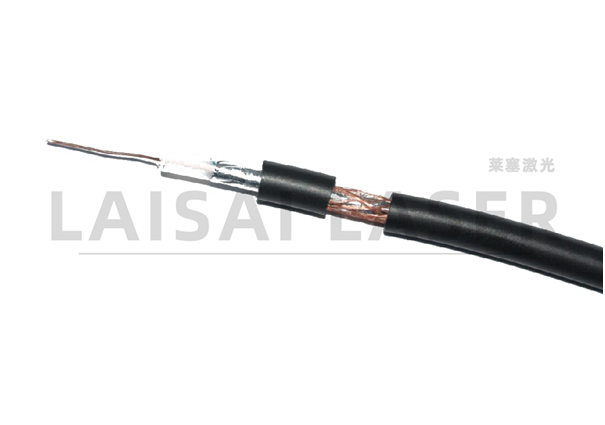

The composition of leaky coaxial cable is composed of cable sheath, insulating medium, inner conductor and outer conductor with periodic slots. As the outer conductor with periodic slots, my country uses thin aluminum sheet, and uses (copper sheet or other materials or laser) equipment to make slots of different forms on the aluminum sheet, and then surrounds it. This slot is not fixed. Whether it is the arrangement of the nest holes or the shape of the nest holes, there are different styles, such as straight, 鈹? eight-shaped, elliptical, U-shaped, etc.

Other countries have abandoned the traditional and costly copper cutting method and switched to laser cutting, and my country has just started to apply it, so here we will introduce the use of laser cutting to process the nest holes.

As a non-contact processing tool, 5G leaky cable laser cutting equipment can apply high-intensity and high-precision processing on a very small range. The advantages of using laser to cut 5G leaky cables are also obvious:

1. Laser cutting does not require consumables, which is both environmentally friendly and cost-saving;

2. Laser cutting of 5G leaky cables uses high-performance fiber laser light sources with good beam quality, high cutting accuracy and better results;

3. Laser cutting of 5G leaky cables is a non-contact processing, which effectively avoids damage and deformation of the processed materials and will not cause any damage to the underlying PET.
