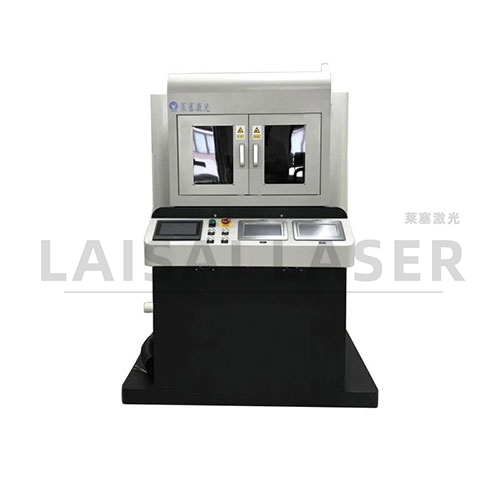

Thinfilmlaserdrillingmachine,laserdrillingmachine
Due to the advantages of laser in focusing, the focusing point of thin film laser punching machine can be as small as sub-micron order of magnitude, which makes it more advantageous for micro-processing of thin films, and the cutting and drilling depth is controllable. Even at a low pulse energy level, a high energy density can be obtained, and materials can be processed effectively. Thin film laser punching machine belongs to non-contact processing, and the punching pattern can be set at will. At the same time, the machine has laser process functions such as marking, easy-tear line, solid line, dotted line, half-cut, and full-cut.
Processing advantages
1. The laser punching machine uses a high-beam quality American metal tube CO2 laser;
2. The laser punching speed is fast, and the single hole speed is as high as 150m/min;
3. The laser can operate on films of different thicknesses, with better compatibility and versatility;
4. The laser can cut some more complex patterns;
5. Laser punching does not require the replacement of blade molds, there is no problem of tool wear, and it can operate continuously for 24 hours.
Configuration:
PLC: Taiwan Yonghong or Mitsubishi PLC
Touch screen: Weiluntong 7-inch color screen
Inverter: Delta M series inverter
Analog output amplifier module
Reeling motor
Reeling drive one steel roller and one rubber roller
Magnetic powder tension control (one set for unwinding and one set for rewinding)
Unwinding deviation control (including air expansion roller)
Pneumatic clamping (4 sets, 8 cylinders)
German sick rotary encoder
30mm steel plate finishing, chrome-plated connecting rod, electric box, guide roller, etc.
AC 220V/50Hz;
Laser part configuration:
A. Laser: United States
B. Field mirror: Singapore wavelength
C. Galvanometer: Germany
